HOLTERS: SPIDERFLASH™

Long duration event recorder

Healthcare Professionals Cardiac Rhythm Management Cardiac Rhythm Management Products Arrhythmia assessment SPIDERFLASH

SMART EVENT LOOP RECORDER

SpiderFlash™ combines the power & accuracy of Holter Monitoring with long duration recording benefits

  • 1 or 2 channels
  • Recording up to 30 days
  • Extended capability for 24-hour Holter Monitor recording
  • 12 types of arrhythmias including Atrial Fibrillation
  • Event button activated by patient
  • All RR interval recorded during the whole monitoring period
  • Bluetooth® low energy communication
  • Dedicated μSD card
SPIDERFLASH SPIDERFLASHECG 1

EXTENDED RECORDING

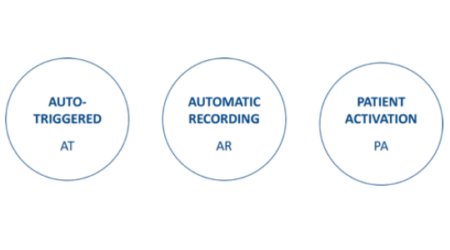

SpiderFlash™ combines three recording modes to ensure data collection in the most optimal way:

  • AUTO-TRIGGERED (AT) MODE the device automatically triggers data storage each time an arrhythmic event is detected
  • AUTOMATIC RECORDING (AR) MODE allows programing of automatic recordings at fixed time periods
  • PATIENT ACTIVATION (PA) MODE as often as the patient presses the event button, the device automatically stores the corresponding ECG samples (4 minutes before and 2 minutes after the event)
SPIDERFLASH Spider 2

HookUp™ 3

PROGRAMMING SOFTWARE

Initialization and optimization of recordings with Bluetooth interface or fast on-screen Card Start mode

Intuitive hookup

  • Wireless Bluetooth® set up
  • Card Start mode available (stand-alone setting)
  • Step by step wizard for quick and easy hook-up

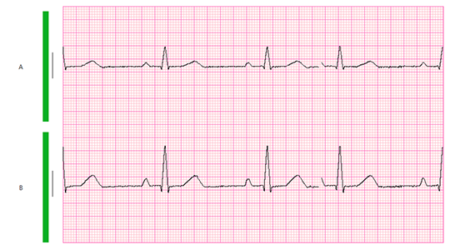

  • Real-time signals and impedance checking for accurate positioning of sensors
  • Four protocols available and fully customizable (Palpitations, Syncope, Ventricular Tachycardia, Atrial Fibrillation)
SPIDERFLASH Hookup3 Impedance check 1

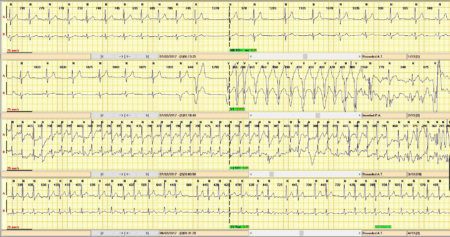

EventScope™

ANALYSIS SOFTWARE

A comprehensive reporting tool

  • Trend screen to visualize rhythm disorders
  • Hear Rate, RR intervals and pathologies,
  • Histograms
  • Hourly summary
  • Customized printing & integrated PDF report
  • Compatible with HL7
SPIDERFLASH Eventscope v2 1
