Firehawk™ Stent Family

Next-Generation Target-Eluting Stent (TES) Platform

Healthcare Professionals Cardiovascular Firehawk
Firehawk™ Family
Firehawk™: Redefining Drug-Eluting Stents with Targeted Precision
The Firehawk™ coronary stent combines innovative targeted drug release with robust clinical validation. Thanks to its unique abluminal grooves providing targeted drug release and its ultra-low drug dosage, Firehawk™ delivers proven safety and lasting patient outcomes.

Its biodegradable polymer facilitates faster endothelialization and reduces the risk of thrombosis, providing a safe and effective treatment option for patients with coronary artery disease.
The Technology Behind the Performance: Less is More
The Firehawk™ stent's demonstrated clinical performance is driven by a unique combination of design features:

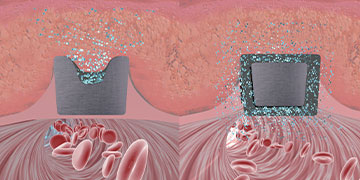

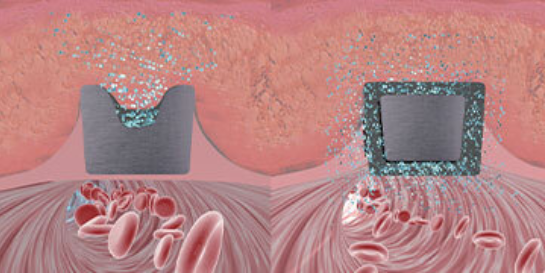

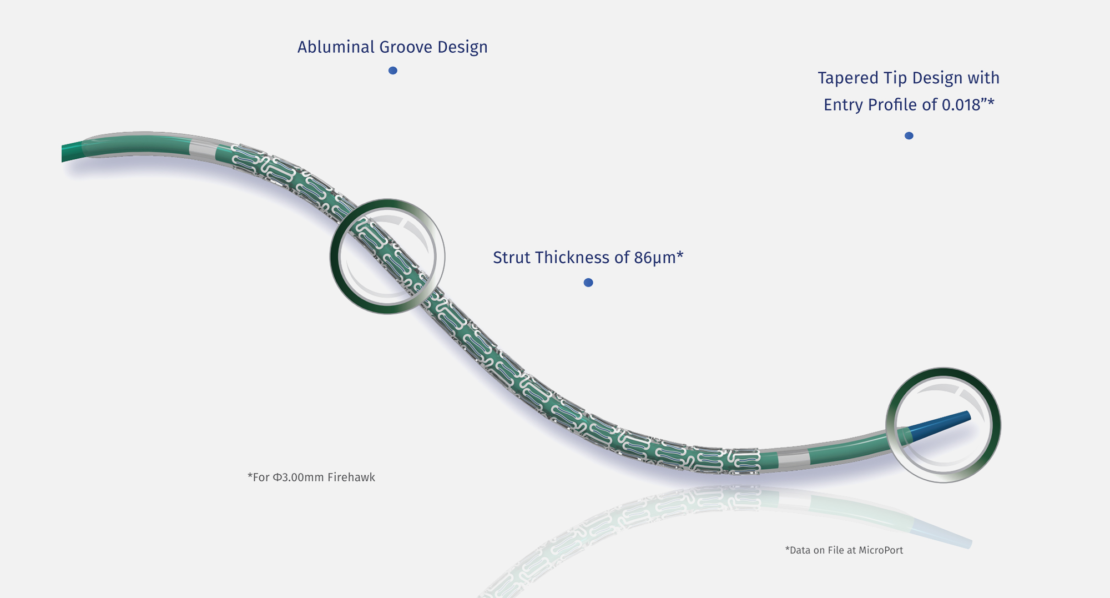

Abluminal Groove Design
Targets drug release precisely towards the arterial wall, limiting systemic exposure and supporting vessel healing.
Ultra-low Drug Density
At just 0.3 μg/mm² of Rapamycin (Sirolimus), Firehawk™ delivers a significantly lower drug dosage than conventional DES, reducing drug and polymer exposure while maintaining efficacy.

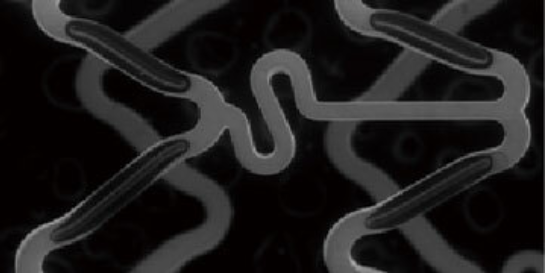

Bioabsorbable Polymer
Applied only within the abluminal grooves, the polymer enables controlled drug release over ~3 months and is fully absorbed, minimizing long-term exposure and inflammation risk.

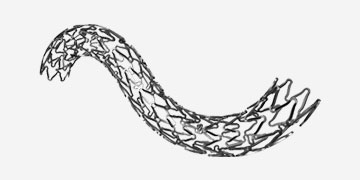

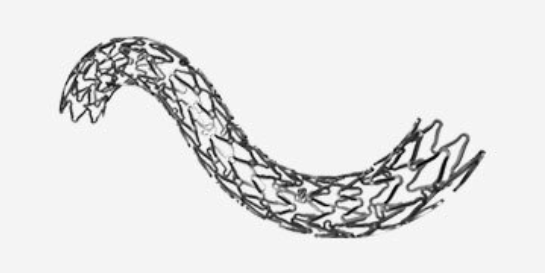

Strut cobalt-chromium (CoCr) platform
Strut thickness of 86 μm to support flexibility, vessel conformability, and radiopacity for optimal delivery and support.

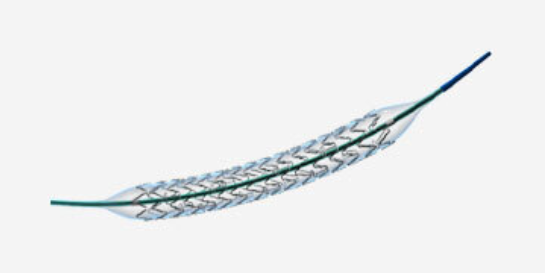

Tapered Entry Profile
0.018” entry tip for optimized lesion crossability and smoother procedure.
Clinical Confidence, Demonstrated in Practice

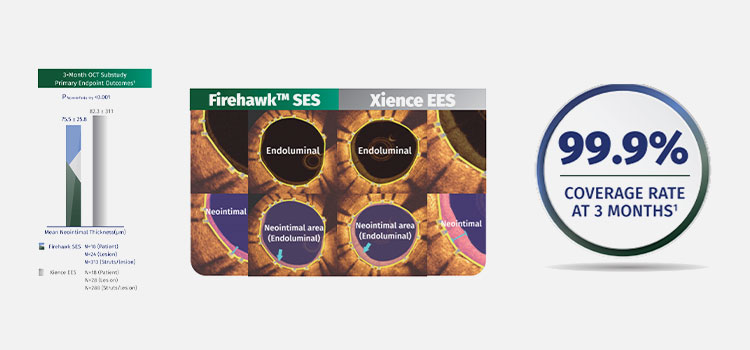

Demonstrated leading early healing performance, with a 99.9% coverage rate[1] at 3 months (OCT substudy)

Cardiovascular FIREHAWK 1

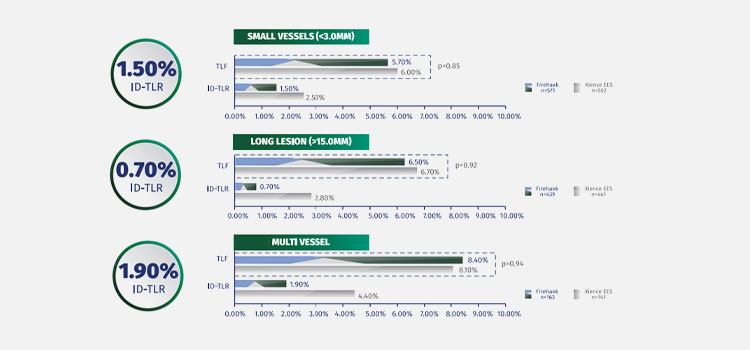

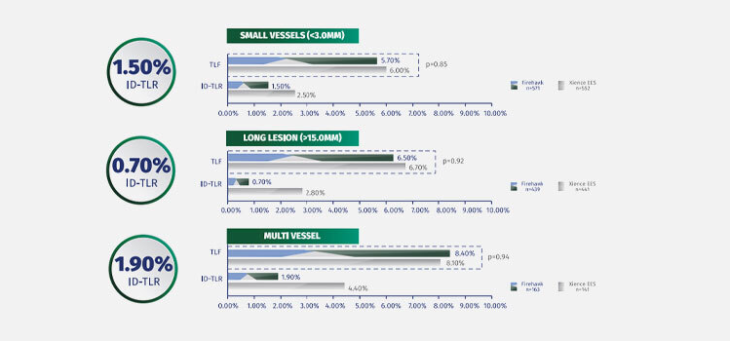

Best-in-class 12-month outcomes across complex cases, including small vessels, long lesions, and multi-vessel disease

Cardiovascular FIREHAWK 1

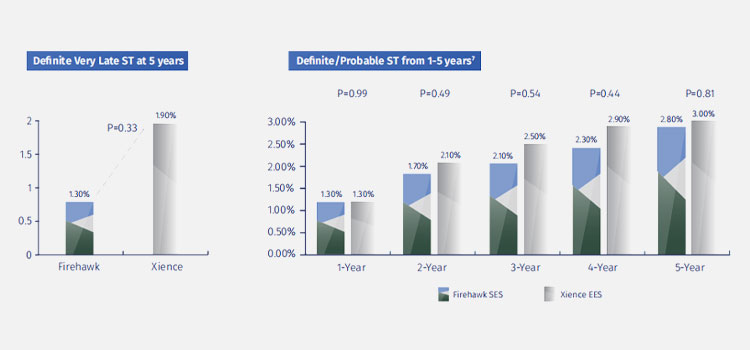

Demonstrated long-term safety and efficacy from multi-center trials under the TARGET program

Cardiovascular FIREHAWK 1

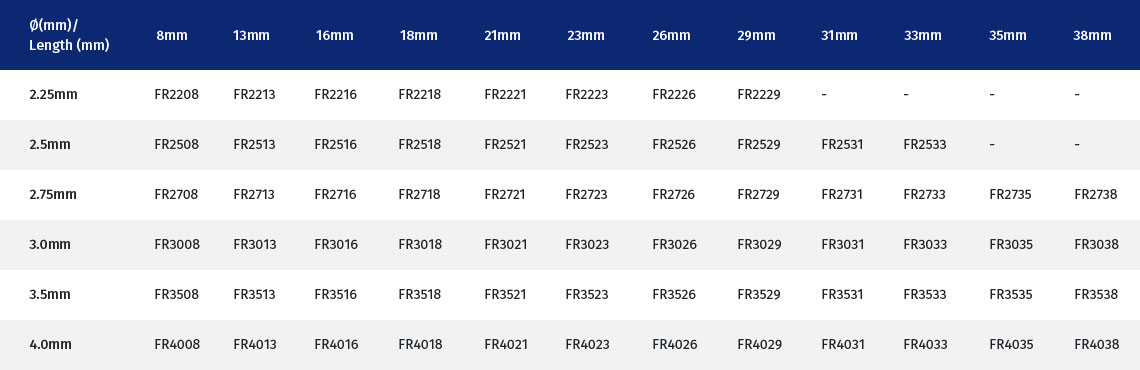

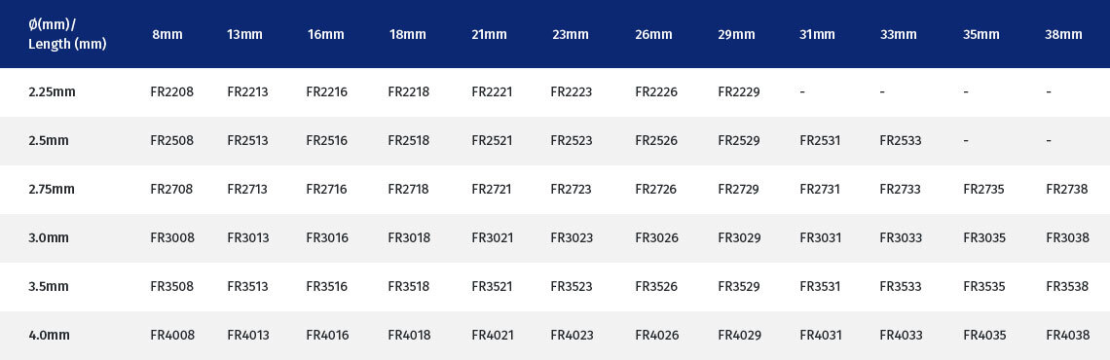

Ordering Information
References

1.Baumbach A., et al. EuroIntervention. 2018;14(10):1121-1128.

Important Safety Information
INDICATIONS
The Firehawk™ and Firehawk Liberty™ are indicated for improving coronary luminal diameter in patients with symptomatic heart disease due to de novo native coronary artery lesions length ≤ 60 mm with reference vessel diameters of ≥ 2.25 to ≤ 4.0 mm.
CONTRAINDICATIONS

The Firehawk™ and Firehawk Liberty™ are contraindicated for use in patients:

• Who cannot receive antiplatelet and/or anti-coagulant therapy

• With lesions that prevent complete angioplasty balloon inflation or proper placement of the stent or stent delivery system

• With hypersensitivity or contraindication to rapamycin or similar drugs or any other analogue or derivative, cobalt, chromium, nickel, tungsten, or PLA

WARNINGS

• Ensure that the inner package sterile barrier has not been opened or damaged prior to use.

• Judicious patient selection is necessary since the use of the device carries the associated risks of thrombosis, vascular complications, and/or bleeding events.

• This product should not be used in patients who are not likely to comply with the recommended antiplatelet therapy.

PRECAUTIONS

General Precautions

• Stent implantation should only be performed by physicians who have received appropriate training.

• Stent placement should be performed at hospitals where emergency coronary artery bypass graft surgery is accessible.

• Subsequent restenosis may require repeat dilatation of the arterial segment containing the stent. Long-term outcomes following repeat dilatation of the stent are presently unknown.

• Risks and benefits should be considered in patients with severe contrast agent allergies.

• Do not expose or wipe the product with organic solvents such as alcohol or detergents.

• Care should be taken to control the guiding catheter tip during stent delivery, deployment, and delivery system withdrawal. Before withdrawing the stent delivery system, visually confirm complete balloon deflation by fluoroscopy to avoid guiding catheter advancement into the vessel and subsequent arterial damage.

• Compared to use within the specified Indications for Use, the use of DES in patients and lesions outside of the labeled indications may have an increased risk of adverse events, including stent thrombosis, stent embolization, MI, or death.

• It is very important that the patient comply with post-procedural antiplatelet therapy recommendations. It should be adapted depending on patient profile, clinical indication and intervention characteristics, and in accordance with ESC and ACC/AHA/SCAI guidelines.

• Early discontinuation of prescribed antiplatelet medications could result in a higher risk of stent thrombosis, MI, or death. The risks and benefits of the procedure should be weighed against the possible risks associated with early discontinuation of antiplatelet therapy. Patients who require early discontinuation of antiplatelet therapy should be monitored carefully for cardiac events.

• Orally administered sirolimus combined with cyclosporine is associated with increased serum cholesterol and triglycerides levels.

• When used with cyclosporine medication, The sirolimus mean AUC and mean Cmax may be affected

ADVERSE EVENTS

Adverse events may be associated with the implantation of a coronary stent in coronary arteries, but are not limited to the following:

• Allergic reaction to anti-coagulant and/or antiplatelet therapy, contrast medium, or stent materials

• Arrhythmias

• Arteriovenous fistula

• Bleeding

• Cardiac tamponade

• Coronary aneurysm

• Death

• Dissection

• Drug interactions with antiplatelet/anticoagulant/contrast medium

• Emboli, distal (tissue, air, or thrombic emboli)

• Embolization, stent

• Emergency CABG

• Failure to deliver the stent to the intended site

• Fever

• Heart failure

• Hemorrhage

• Hypotension/Hypertension

• Infection, local or systemic

• Myocardial infarction

• Pain, at the access site

• Pseudoaneurysm, femoral

• Restenosis of stented segment

• Stent embolization or migration

• Stent fracture

• Stent thrombosis/occlusion

• Target lesion revascularization

• Target vessels of non-target lesion revascularization

• Total occlusion of coronary artery

• Vessel trauma requiring surgical repair or reintervention

Potential adverse events not captured above, that may be unique to the rapamycin drug coating

• Abnormal liver function tests

• Allergic/immunologic reaction to drug (rapamycin or structurally-related compounds) or the polymer stent coating or its individual components (see Section 1 Product

Description)

• Anemia

• Arthralgias

• Diarrhea

• Hypercholesterolemia

• Hypersensitivity, including anaphylactic/anaphylactoid type reactions

• Hypertriglyceridemia

• Hypokalemia

• Infections

• Interstitial lung disease

• Myocardial infarction

• Myocardial ischemia

• Occlusion

• Prolonged angina

• Pseudoaneurysm

• Hematologic dyscrasia (including leukopenia, neutropenia, thrombocytopenia)

• Renal failure

• Restenosis of stented segment (greater than 50% obstruction)

• Stroke

• Vessel spasm

• Vessel perforation
